Motion MCW with MediaWave Computer – Installation and Assembly Procedure

5 Document No. 002-15-0010

Motion Proprietary & Confidential

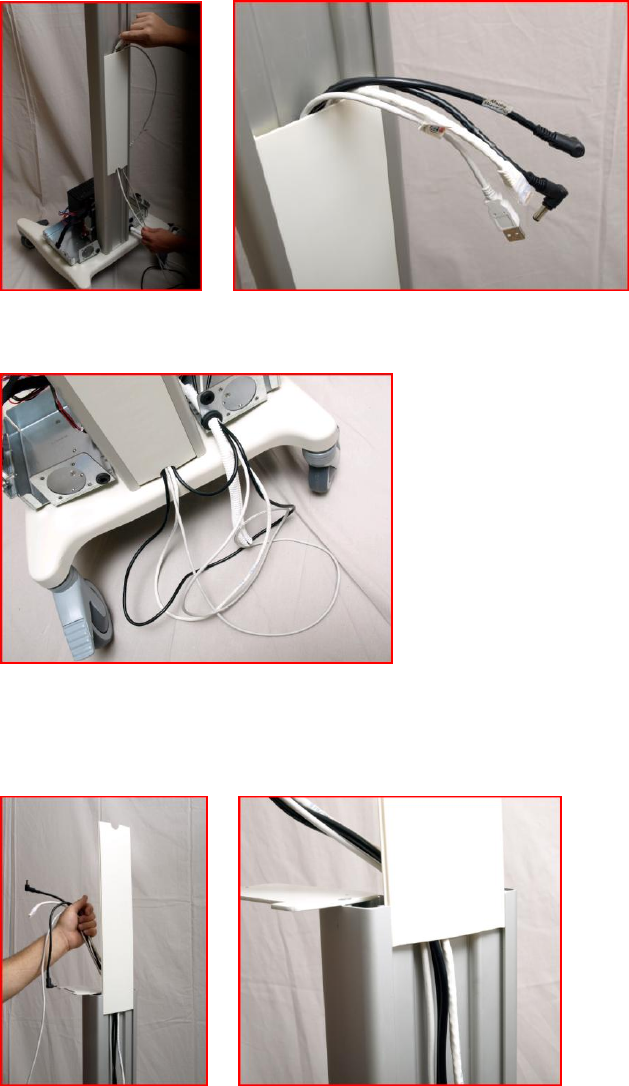

2.8 Route cables behind the decorative cover

2.9 Slide decorative cover to the bottom of the column

2.10 Holding cable in the channel and insert second decorative cover in the

back column channel groves

Note: The half moon cut out is up
