Motion MCW with MediaWave Computer – Installation and Assembly Procedure

13 Document No. 002-15-0010

Motion Proprietary & Confidential

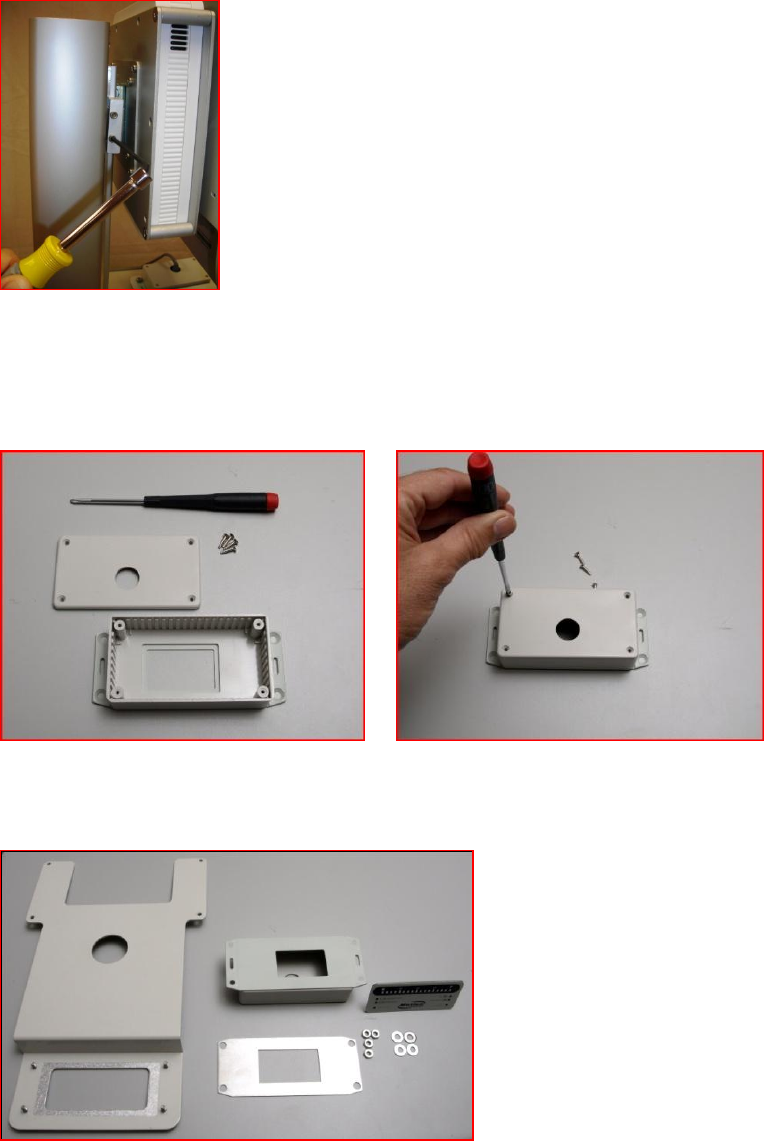

5.1 Position the VESA Mount bracket about one inch from the top of the

column rail and secure by tightening the set screws

6. Assemble the Battery Gauge housing

Note position of housing square cutout (offset to left) and cover hole (offset to

bottom)

7. Assemble the Mounting plate and Battery Gauge
